4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline

Brand Name : H&F

Model Number : HF-250608

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 26000 Square Meters

Price : USD2.94/M2~USD3.62/M2

Payment Terms : T/T, Western Union

Supply Ability : 62000 Square Meters per month

Delivery Time : According to order quantity

Packaging Details : 50 rolls per bundle or as customers' requirements

Product Name : Galvanized Pipe coating welded mesh

Key word : Pipeline reinforcement welded mesh

Material : Hot dipped Galvanized wire

Wire diameter : 1.6mm-2.8mm

Hole Size : 25.4mm x 67mm

Surface treatment : hot dipped galvanized

Exposed Wire Edge : ≤ 2.5 mm

Line wire quantity : 6lines or 8lines,10Lines

Middle line wire pitch : 25.4 mm

Zinc coated : 70gm²~300g / m² or custom

Cross wire pitch : 67 mm or 92.4 mm

Both sides line wire pitch : 25.4 mm or 50.8 mm

Hardness range : 485N/mm2~650N/mm2

Length : 140m,145m,280m etc

Width : 190.5mm

Roll Diameter : 700mm~1100mm

Load container way : In bulk or in pallet

Sample : Supply free sample to test

Contact Now

4Rolls/Bundle Galvanized Pipe coating welded mesh for Chemical Processing Pipeline

Galvanized Pipe coating welded mesh Description:

Galvanized Pipe coating welded mesh also called Pipeline reinforcement welded mesh.It belong to our welded mesh.
It is special design and use for offshore oil and gas pipeline use.

It choose high grade quality galvanized wire,Make in strong and uniform hole size.

The wire diameter normal have 1.8mm,2mm,2.2mm,2.5mm 2.7mm and so on.

The line number normal have 6lines,8lines,10lines can choice and use.The roll length

can as clients' application special custom.The high tensile strength,anti-rust surface and lond use time

so widely use for Chemical Processing Pipeline project.

Galvanized Pipe coating welded mesh specification list:

Product Name	Galvanized Pipe coating welded mesh
Material	Hot dipped galvanized wire
Wire diameter	1.6mm-2.8mm
Hole size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Zinc coated	70gm²~300g / m² or custom
Middle line wire pitch	25.4 mm
Cross wire pitch	67 mm or 92.4 mm
Both sides line wire pitch	25.4 mm or 50.8 mm
Line wire quantity	6lines, 8lines or 10lines
Exposed Wire Edge	≤ 2.5 mm
Hardness range	485N/mm2~650N/mm2
Roll Diameter	700mm-1150mm
Width dimensions	190.5mm
Length dimensions	140m,145m,280m etc
Sample	Supply free sample to test

Galvanized Pipe coating welded mesh export product details:

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline
Galvanized Pipe coating welded mesh export 4kinds for choose:

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline

Galvanized Pipe coating welded mesh good advantges:

High grade quality
Standard wire diameter and roll width
Standard hole size
Uniform hole design
Anti-rust and Anti-corrosion
Strong welded
Enough roll length
Tensile strength strong
Use long time
Easy use and store
Strong packing way
Suitable for shipping

Galvanized Pipe coating welded mesh package way:

4Rolls make in per bundle
In Strong pallet
In Strong wooden box
In bulk load container
As required way

Galvanized Pipe coating welded mesh widely application:

Water and Wastewater Pipeline
Chemical Processing Pipeline
River Bottom Gas & Oil Pipeline
Everglades Gas Pipeline
Subsea Gas & Oil Pipeline

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline

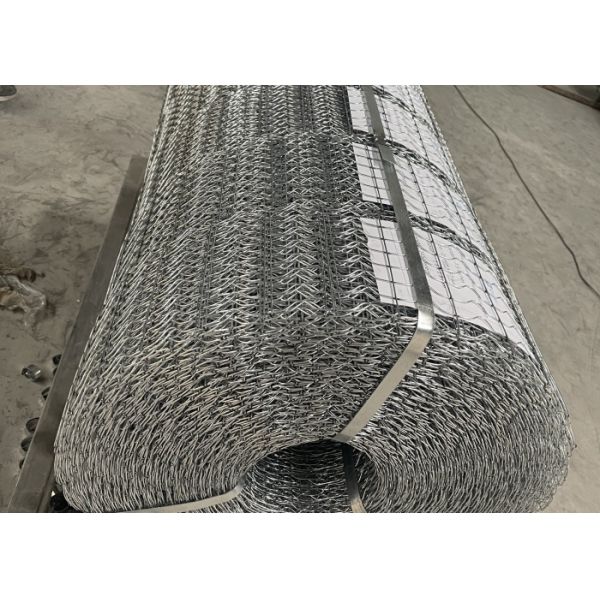

Show our Galvanized Pipe coating welded mesh product pictures:

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline
