7 * 7 type custom Rope Ferrule Mesh wire mesh stainless steel wire for Cable Zoo Mesh
Rope Ferrule Mesh:
Rope Ferrule Mesh used for anti-hill mesh, aviary mesh,zoo fencing,farm fencing and other security mesh,
with stainless steel material and feature of rust-proof ,strongess and durability.
Rope Ferrule Mesh two types:
- one is woven types of steel cable mesh,
- the other is ferrule types of steel cable mesh.
Rope Ferrule Mesh woven types:
stainless steel 304, 304L,316,316L.
Rope Ferrule Mesh structure:
7x7 and 7x19.
Rope Ferrule Mesh wire diameter:
1/8", 3/32", 1/16", and 3/64"
Rope Ferrule Mesh the standard mesh opening size includes
1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".
Rope Ferrule Mesh widely use in areas:
- fields like balustrades on bridges and staircases,
- large barrier fences, and building facade trellis systems.
- As an emerging product on architectural decoration and protection,
- provided the mordern architectural decoration and horticulture engineering with a new and stylish element,
which are getting more and more appreciated by designeers and clients all over the world.
Rope Ferrule Mesh list:
| Material | AISI 316 stainless steel.EN1.4401 |
| OW | Opening Width |
| OH | Opening Height |
| Rope diameter | 1.0 mm | 1.5 mm | 2.0 mm | 3.0 mm |
| Rope Structure | 7 x 7 | 7 x 7 | 7 x 7 | 7 x 19 |
| Test Break Loading | 81 KG | 168KG | 290 KG | 700 KG |
| | | | | |
| Mesh | Rope Diameter |
| OW X OH | 1.0 mm | 1.5 mm | 2.0 mm | 3.0 mm |
| 20 x 35 | CD1020 | | | |
| 25 x 45 | CD1025 | CD1525 | | |
| 30 x 52 | CD1030 | CD1535 | | |
| 35 x 61 | CD1035 | CD1535 | CD2035 | |
| 40 x 70 | CD1040 | CD1540 | CD2040 | CD3040 |
| 50 x 90 | CD1050 | CD1550 | CD2050 | CD3050 |
| 60 x 105 | CD1060 | CD1560 | CD2060 | CD3060 |
| 70 x 120 | CD1070 | CD1570 | CD2070 | CD3070 |
| 80 x 140 | CD1080 | CD1580 | CD2080 | CD3080 |
| 100 x 175 | CD10100 | CD15100 | CD20100 | CD30100 |
| 120 x 210 | CD10120 | CD15120 | CD20120 | CD30120 |
| 160 x 280 | CD10160 | CD15160 | CD20160 | CD30160 |
| 180 x 315 | CD10180 | CD15180 | CD20180 | CD30180 |
| 200 x 350 | CD10200 | CD15200 | CD20200 | CD30200 |
Rope Ferrule Mesh:
Rope Ferrule Mesh also called Flexible cable mesh,helipad safety net,knotted rope mesh,ss rope mesh,
woven rope mesh,steel mesh balustrade,aviary netting and ferrule rope mesh etc.

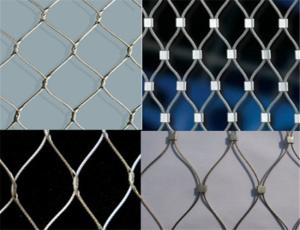

Show our Rope Ferrule Mesh for reference:
