BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway

  • 1
  • 2
  • 3

Brand Name : Hangshun

Model Number : BTO-22WM

Certification : ISO9001

Place of Origin : Hebei, China

MOQ : 1 Tons

Price : USD980-1180 per ton

Payment Terms : T/T, Western Union

Supply Ability : 20 tons per week

Delivery Time : 7-10 days, according to order quantity

Packaging Details : Plastic film inside, outside weaving bag; Plastic film inside, outside cohesion bag.

Product Name : BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire

Key word : Razor Concertina Wire

Model type : BTO-22

Material : Steel or Stainless steel sheet

Wire diameter : 2.5mm 2.8mm etc

Surface Treatment : Heavy galvanized

Coil weight : 5kg 8kg 9kg 10kg 10kg 12kg 15kg 20kg 25kg etc

Cover Length : 5m-15m or your required

Coil Diameter : 450mm,500mm,600mm,700mm,800mm,900mm etc

Feature : Easy install and long time use

Use life : Above 8years

Sample : Sample Avaliable and Free

Contact Now

BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway

Concertina Razor Barbed Wire Description:

Concertina Razor Barbed Wire has many circles. Tie every two adjacent circles by clips, and a spiral

razor wire fencing is created. The clips one circle needed is depended on the diameter of the circle.

Generally speaking, the diameter of an opening circle would be 5-10% less than its original size.

Concertina Razor Barbed Wire Specification list:

Reference
Thickness
Wire Dia
Barb Length
Barb Width
Barb Spacing
No.
mm
mm
mm
mm
mm
BTO-10
0.5+0.05
2.5+0.1
10+1
13+1
26+1
BTO-12
0.5+0.05
2.5+0.1
12+1
15+1
26+1
BTO-18
0.5+0.05
2.5+0.1
18+1
15+1
33+1
BTO-22
0.5+0.05
2.5+0.1
22+1
15+1
34+1
BTO-28
0.5+0.05
2.5+0.1
28+1
15+1
45+1
BTO-30
0.5+0.05
2.5+0.1
30+1
18+1
45+1
CBT-60
0.6+0.05
2.5+0.1
60+2
32+1
100+2
CBT-65
0.6+0.05
2.5+0.1
65+2
21+1
100+2
Note: Special specifications can be made according to customers requires.

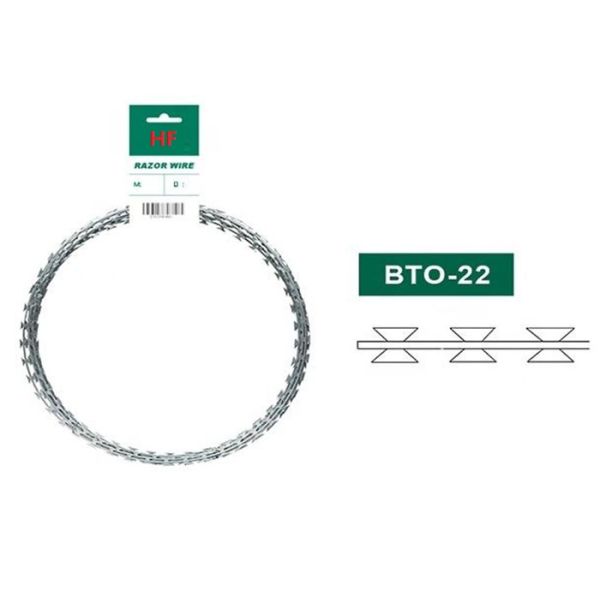

Concertina Razor Barbed Wire different types can choose:

BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway

Concertina Razor Barbed Wire features:

①　Non-climbing.

②　Robust welded structure.

③　Zinc coating improve corrosive resistance.

④　Available in square and diamond profile.

Concertina Razor Barbed Wire advantages:

①　No overhang structure will not hurt innocent bystanders.

②　Neat appearance without overhang.

③　Optimum choice for limited space where also needs high security.

④　Available as a free standing fence.

⑤　Standard sizes are provided (shown in the table) and custom sizes on special order.

⑥　Easy installation.

Concertina Razor Barbed Wire packing way:

  • wrapped with waterproof paper
  • then in woven bag
  • Last in strong pallet or wooden box
  • as your required way

Concertina Razor Barbed Wire application:

①　Residential and commercial security.

②　Expressway and highroad barrier.

③　Gardens.

④　Boundary.

⑤　Prison.

Show our Concertina Razor Barbed Wire pictures for reference:

BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highwayBTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highwayBTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highwayBTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway

BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway

Our company:

BTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highwayBTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highwayBTO-22 Type 2.5mm wire diameter Concertina Razor Barbed Wire for highway
